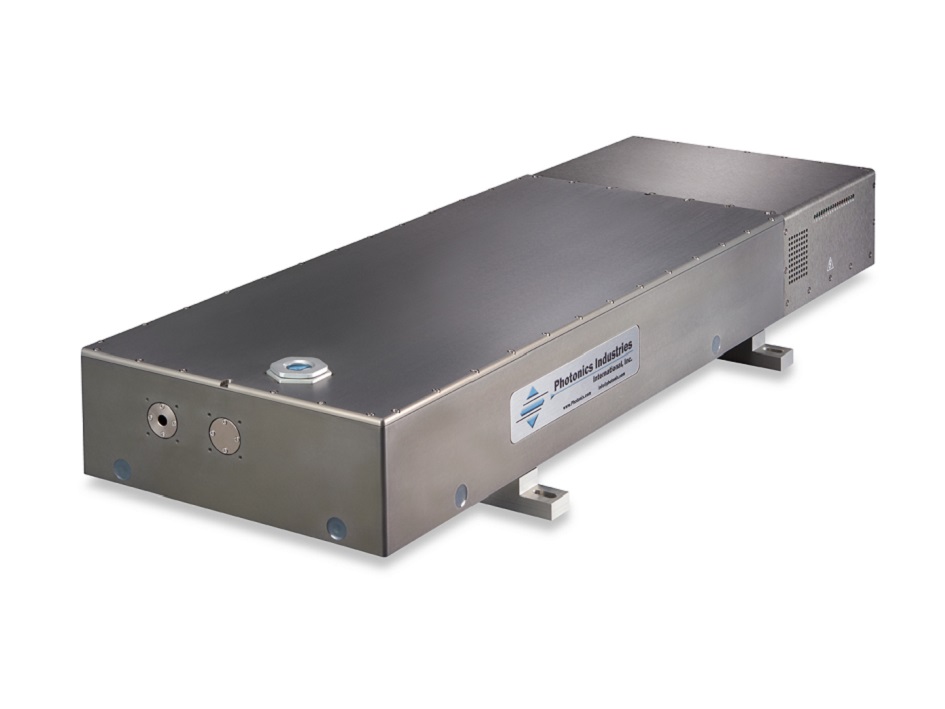

PS-Series (qcw)
- Wavelength 1064 nm, 532 and 355 nm
- Power up to 80 W
- Cooled, closed circuit up to 40 W
- Compact laser head
- All-in-one-design (without additional controller)
| Modell | PS-1064-15 | PS-1064-50 | PS-1064-80 |
|---|---|---|---|
|
Wavelength [nm] |
1064 |
||
|
Average Power [W] |
15 |
50 |
80 |
|
Pulse Width [ps] |
< 15 |
||
|
Repetition Rate [MHz] |
72 |
||
|
Spatial Mode [M²] |
< 1.3 |
||
|
Polarization Ratio |
Vertical |
Horizontal |
|
|
Long Term Stability (8h) [rms] |
2 % |
1 % |
|
| Modell | PS-532-10 | PS-532-35 | PS-532-50 |
|---|---|---|---|
|
Wavelength [nm] |
532 |
||
|
Average Power [W] |
10 |
35 |
50 |
|
Pulse Width [ps] |
< 15 |
||
|
Repetition Rate [MHz] |
72 |
||
|
Spatial Mode [M²] |
< 1.3 |
||
|
Polarization Ratio |
Vertical |
||
|
Long Term Stability (8h) [rms] |
2 % |
||
| Modell | PS-355-3 | PS-355-15 | PS-355-25 |
|---|---|---|---|
|
Wavelength [nm] |
355 |
||
|
Average Power [W] |
3 |
15 |
25 |
|
Pulse Width [ps] |
< 15 |
||
|
Repetition Rate [MHz] |
72 |
||
|
Spatial Mode [M²] |
< 1.3 |
||
|
Polarization Ratio |
Vertical |
Horizontal |
|
|
Long Term Stability (8h) [rms] |
3 % |
||
